  1. Sensors on Cyclong Bin Cover

    Sensors on Cyclong Bin Cover

    Optical Sensors mounted across bin top.
    • McRabbet
    • Media item
    • bin collection dust sensor
    • Comments: 0
    • Album: Dust Collection
  2. Control Box Features

    Control Box Features

    1) Power Switch with LED; 2) Horn Button; 3) Cyclone connection bushing; 4) Normal/Bypass Switch; 5) Strobe and Horn Unit.
    • McRabbet
    • Media item
    • bin collection dust sensor
    • Comments: 0
    • Album: Dust Collection
  3. Bin Sensor System Contents

    Bin Sensor System Contents

    Components included with McRabbet Woodworks Bin Sensor system.
    • McRabbet
    • Media item
    • bin collection dust sensor
    • Comments: 0
    • Album: Dust Collection
  4. Mt. Gomer

    Bin Laden Thread

    I deleted this thread: http://www.ncwoodworker.net/forums/showthread.php?t=38838 As much as I think most of us probably agree with the sentiment nothing good will come of it and it doesn't belong at NCWW... I'll IM the OP... Travis
  5. Tablesaw and jointer connections

    Tablesaw and jointer connections

    on Jerry Grant's ClearVue Cyclone
    • McRabbet
    • Media item
    • bin clearvue cyclone
    • Comments: 0
    • Album: Dust Collection
  6. Filter Clean out

    Filter Clean out

    Filter Clean out
    • McRabbet
    • Media item
    • bin clearvue cyclone
    • Comments: 0
    • Album: Dust Collection
  7. MDF Bin Lid Underside

    MDF Bin Lid Underside

    MDF Bin Lid on Jerry Grant's ClearVue Cyclone
    • McRabbet
    • Media item
    • bin clearvue cyclone
    • Comments: 0
    • Album: Dust Collection
  8. MDF Bin Lid

    MDF Bin Lid

    MDF Bin Lid on Jerry Grant's ClearVue Cyclone
    • McRabbet
    • Media item
    • bin clearvue cyclone
    • Comments: 0
    • Album: Dust Collection
  9. T

    Scrap bin

    Well after giving away my large rolling lumber cart I was left with many scraps. I went in the shop today and the tool I needed was behind that pile of scrap. I decided I was not going to move the pile again, so I stopped what I was doing and knocked together this bin in about an hour. I wrapped...
  10. Bin-full Window Dust Collector Modification

    Bin-full Window Dust Collector Modification

    Complete JDS Cyclone-II 2HP Cyclone Dust Collector with modified bin-full windows (overview)
    • ehpoole
    • Media item
    • bin collector cyclone dust full indication window workshop
    • Comments: 0
    • Album: Dust Collector Bin Full Window
  11. Bin-full Window Dust Collector Modification

    Bin-full Window Dust Collector Modification

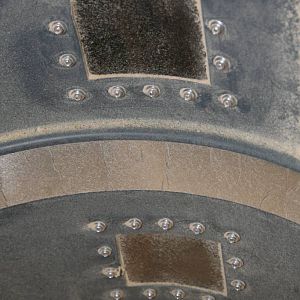

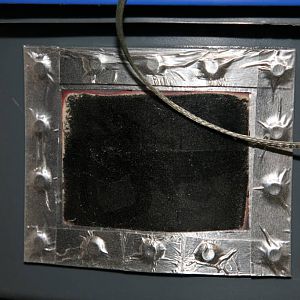

    Close-up of interior of bin-full windows. Note use of rivets and silicone to seal lexan windows to waste bin.
    • ehpoole
    • Media item
    • bin collector cyclone dust full indication window workshop
    • Comments: 0
    • Album: Dust Collector Bin Full Window
  12. Bin-full Window Dust Collector Modification

    Bin-full Window Dust Collector Modification

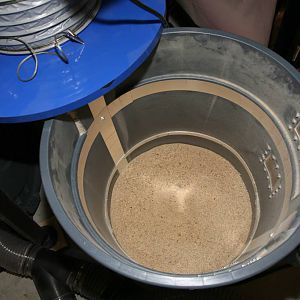

    Interior view of modified waste bin. Also note use of aluminum HVAC tape (with through rivets to provide necessary electrical bond to each stip) used to dissipate/ground unwanted static buildup.
    • ehpoole
    • Media item
    • bin collector cyclone dust full indication window workshop
    • Comments: 0
    • Album: Dust Collector Bin Full Window
  13. Bin-full Window Dust Collector Modification

    Bin-full Window Dust Collector Modification

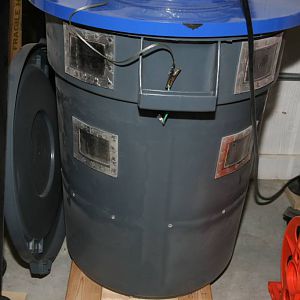

    Close-up of exterior of modified waste bin. I installed two pairs of these windows at ~70% full and ~90% Full. By installing a pair of windows at each level you can use a flashlight to visually detect levels well below either window.
    • ehpoole
    • Media item
    • bin collector cyclone dust full indication window workshop
    • Comments: 0
    • Album: Dust Collector Bin Full Window
  14. Bin-full Window Dust Collector Modification

    Bin-full Window Dust Collector Modification

    General overview of bin-full window modification. Notice the two pairs of windows, providing not only obvious indication at ~70% and ~90% Full, but also allowing the use of a flashlight to view bin status at much lower limits as well.
    • ehpoole
    • Media item
    • bin collector cyclone dust full indication window workshop
    • Comments: 0
    • Album: Dust Collector Bin Full Window
  15. Travis Porter

    Dust Collector full bin sensor

    I have had a few issues with forgetting to check to see if my dust collector is full. To the point that i have overflowed the drum for my cyclone and got the cartridge filter slam packed with wood chips. :embaresse So..... Last year Touchwood came up with what I considered a neat full...
  16. Revised Cyclone Bin Sensor Circuit

    Revised Cyclone Bin Sensor Circuit

    This is an improvement on my old Bin Sensor circuit. All 120V power through Remote Switch. 14/3 Romex from enclosure to Lamp/Photo-Eye. 12 V wall wart for Strobe Lamp not shown - connected to Remote Switch. Relay Bypass Switch allows continued DC operation after alarm when closed (useful...
    • McRabbet
    • Media item
    • bin circuit collection dust sensor
    • Comments: 0
    • Album: Dust Collection
  17. JOAT

    Can storage bin

    Hey guys. Been busy with stuff only partly related to wood. But was looking around today and ran across this. Looks pretty slick, so decided to post it. Probably handy for some of you...
  18. DC Controller Circuit - 03

    DC Controller Circuit - 03

    When the light beam to the photoeye is blocked by sawdust in a full bin (here it is done artificially), the photoeye switches power to its Red output and energizes the ''Ice Cube'' relay coil, tripping the normally open contacts to the closed position and opening the contacts carrying power to...
    • McRabbet
    • Media item
    • bin circuit collector dust sensor
    • Comments: 0
    • Album: Dust Collection
  19. DC Controller Circuit - 02

    DC Controller Circuit - 02

    7W Candelabra at top will sit one side of Bin mouth and shines on dusk-to-dawn photoeye in lower handy box. Photoeye stays ''off'' as long as the beam shine through to opposite side. Switch on top handy box controls power to bin light and sensor. This picture, (flash in darkened room) shows...
    • McRabbet
    • Media item
    • bin circuit collector dust sensor
    • Comments: 0
    • Album: Dust Collection
  20. DC Controller Circuit - 01

    DC Controller Circuit - 01

    6'' by 6'' x 4'' deep PVC junction box with 230 V Contactor at left and DPDT ''Ice Cube'' relay for Bin Sensor at right. Incoming power from a Remote Controlled outlet is fed through normally closet contacts of the ''Ice Cube'' relay to the coil of the Contactor. The Contactor then passes 230V...
    • McRabbet
    • Media item
    • bin circuit collector dust sensor
    • Comments: 0
    • Album: Dust Collection
